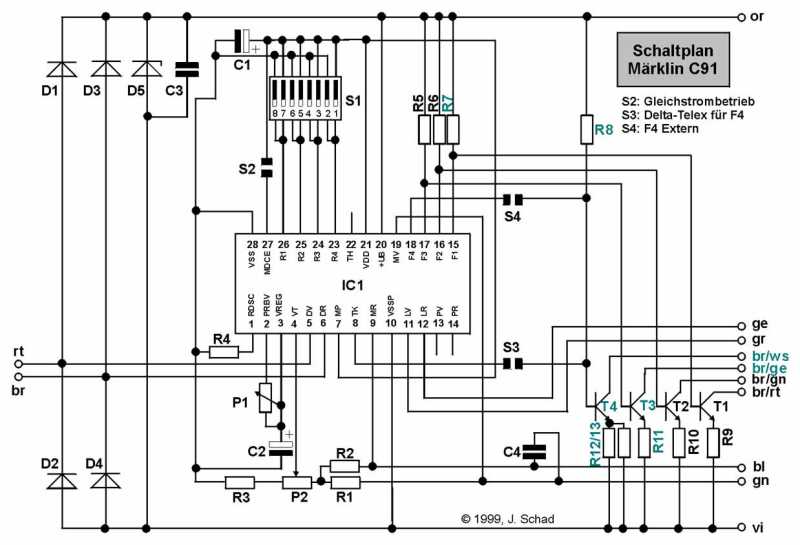

Schematic of the 60901/2
Created by Jürgen Schad
Homepage |
 Size (52KB) |

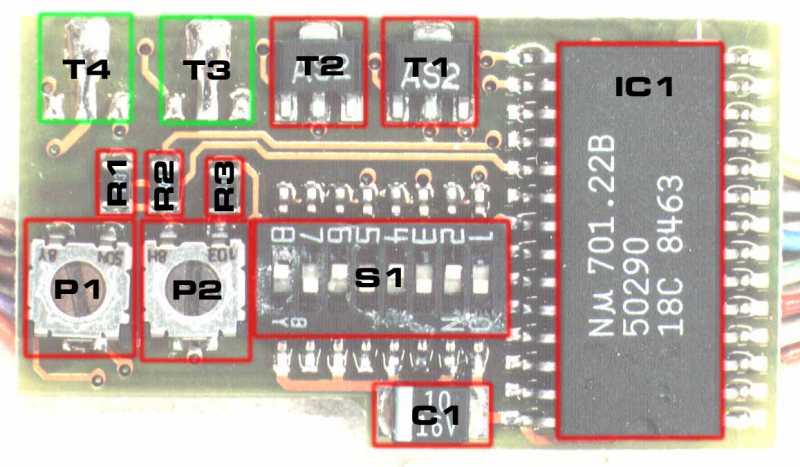

Components - top
Created by Michael Prieskorn
Homepage (great) |
 Size (44KB) |

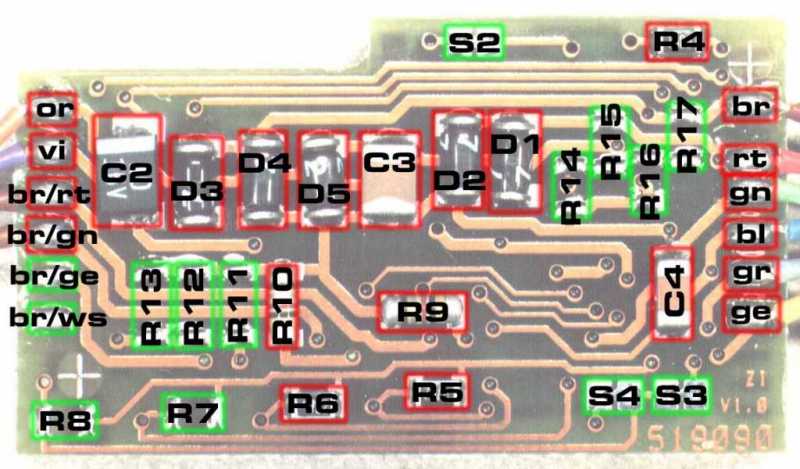

Components - bottum
Created by Michael Prieskorn
Homepage (great) |
 Size (52KB) |
| |
|
|
| !! Click here to view
all the pictures above, in a single page !! |
|
| Components list |
|
| Designator |
Value |
| R1 |
10k |
| R2 |
10k |
| R3 |
10k |
| R4 |
100k |
| R5 |
47k |
| R6 |
47k |
| R7 |
47k |
| R8 |
47k |
| R9 |
3R9 |
| R10 |
3R9 |
| R11 |
3R3 |
| R12 |
3R3 |
| R13 |
3R3 |
| P1 |
500k |
| P2 |
10k |
| C1 |
10uF/6V |
| C2 |
10uF/6V |
| C3 |
1uF/50V |
| C4 |
220nF/50V |
| D1 |
BYD77D |
| D2 |
BYD77D |
| D3 |
BYD77D |
| D4 |
BYD77D |
| D5 |
BZD27C47 |
| T1 |
NPN Darlington |
| T2 |
NPN Darlington |
| T3 |
NPN Darlington |
| T4 |
NPN Darlington |
|
|
| |
|
|
| Mounting Instructions |
| |
60901 with lights and pantograph
 |
60901 with lights and smokeunit
 |
60901 with lights and Telex-coupler
 |
Size (52KB)
Size (44KB)
Size (52KB)
